PEACOC® High Density Fiber Management
Managing the increasingly complex world of optical connectivity
PEACOC® is a breakthrough platform that simplifies the way data centers, MSOS/CATV, and telecom operators manage optical connectivity. Solving the biggest limitations associated with high density fiber connectivity today, PEACOC eliminates the difficulty in accessing and handling the compact optical connectors while performing typical move-add-change (MAC) services.
The PEACOC fiber patch panel is the industry’s first and only solution to allow tool-less access for up to 144 LC simplex connectors in just 1RU of rackspace. It is also the only high density solution which provides easy access to both the front and rear connectors at the same time – from the same side of the rack!
The PEACOC connectivity platform accomplishes this feat while also improving the speed and ease at which even ‘large hand’ technicians can access small form factor optical connectors. Higher capacity and higher density fiber connectivity solutions give service providers greater flexibility while also allowing them to more efficiently and more cost-effectively manage the explosive growth in the number of fiber connections. With PEACOC, each individual optical connection can be easily isolated from adjacent ports, creating a generous region of unobstructed handling space for safe, fast, and error free management of optical fiber jumpers.
PEACOC® 360 PANEL
The PEACOC 360 panel takes speedy network deployments to the next level with usability, manageability, density, and distance. This fast-deployment fiber optic connectivity solution is perfect for most central office, LAN, and data center applications where direct connect or tie panel architectures are needed.
This innovative solution features four independent spools, each with 100 ft of 24F, 3.0 mm cable. The spool capacity not only maximizes the reach distance, but also provides the most flexibility for slack management, virtually eliminating the need for pre-measuring cable lengths. The modular 1RU panel holds up to 96 duplex LC connections. These may be added after first installation, providing ultimate day-two flexibility. The Go!Foton PEACOC 360 is the right-sized quick-deployment connectivity solution for facilities where resources, scalability, and density need to be optimized.
Features
• Four independent cable spools optimized to hold the maximum amount of cable
• Peacoc spreadable adapter technology for generous access to all connectors without affecting insertion loss or risk of an accidental disconnect
• Fixed fiber connections isolated from the spool preserves connection integrity
• Magnetically secured doors to protect connections
• Integrated cable and slack management
• Designed to fit in any 19 in. or 23 in. rack

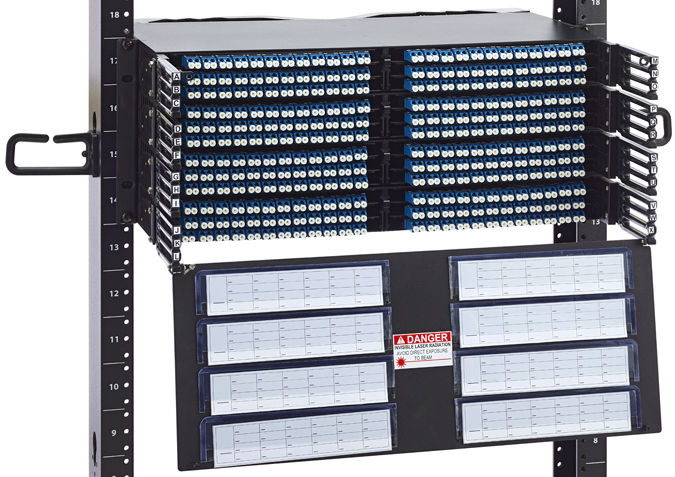

PEACOC®Enhanced View and Access (EVA) high-density fiber patch panels
The PEACOC Enhanced View and Access (EVA) high-density fiber patch panels utilize the reliable and simple PEACOC spreadable adapter technology for superior density for data centers. The distinctive design enables:
-
- Faster port identification
- Easy access to ports
- Simple connector traceability
By choosing PEACOC EVA, you’re prepared to scale your network as needed, saving time and money upfront and eliminating the need for complete system overhauls.PEACOC EVA offers exceptional performance with highly reliable adapters that ensure isolation from adjacent adapters and minimize data loss.
Features
- Fiber housings available in 1RU, 2RU, and 4RU sizes accommodating up to 144, 288, or 576 fibers
- Integrated fiber management ensures safe and efficient routing of patch cords
- Rear housing doors effectively direct cables to minimize bending
- Spreadable adapters and numbered ports
- All front access, scalable density cassettes
- Pre-terminated cable assemblies
- Supports a range of optics, including: SMF, MMF, SC – APC/UPC, LC – APC/UPC, MPO, VSFF & optical devices (PLC’s and WDM’s)
- Around-the-clock global operations and technical support
- On-site product training
- Digital documentation (QR code on product)
- Post sale support

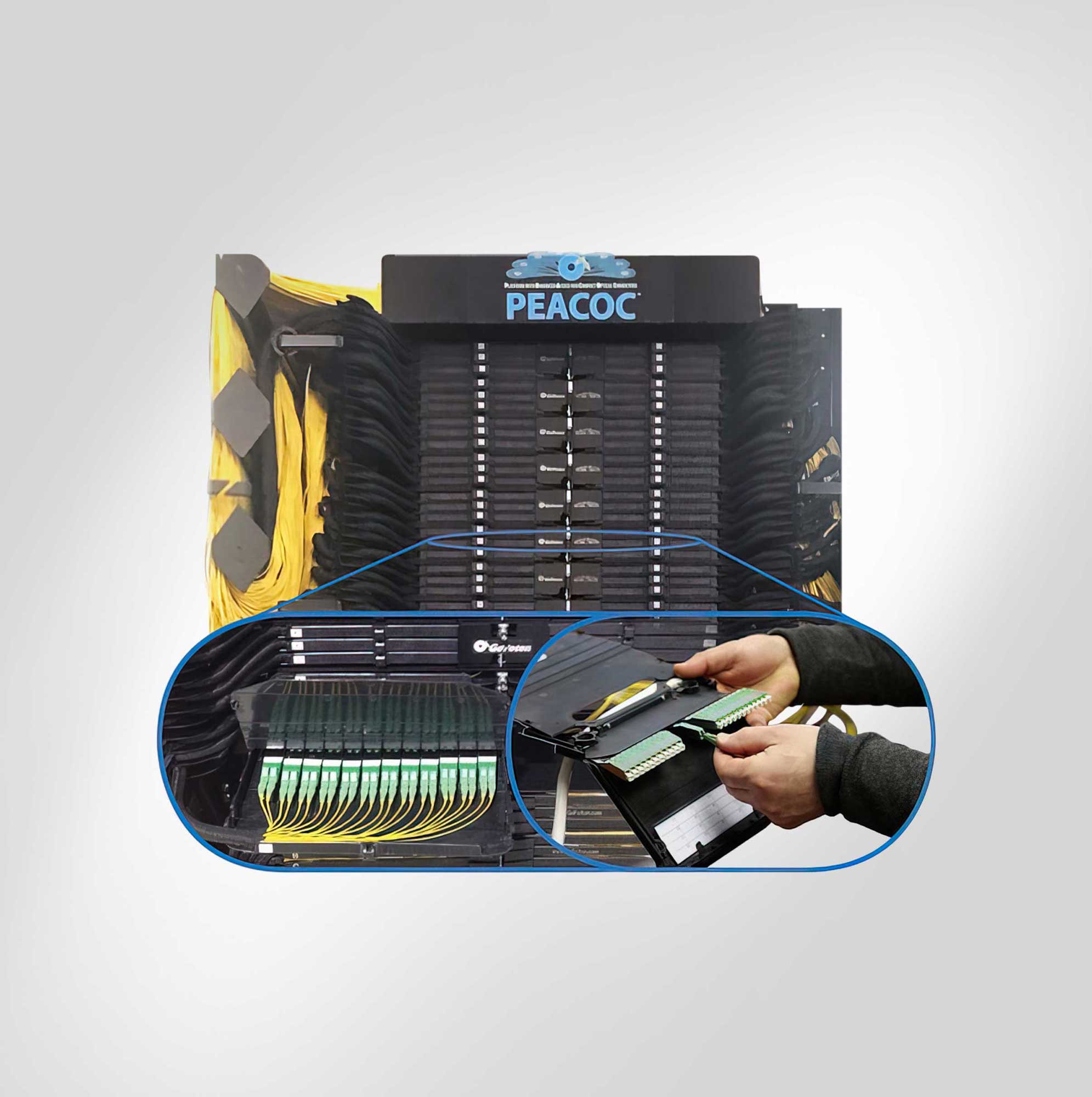

PEACOC® High Density Patch Panel
PEACOC® is Go!Foton’s Platform with Enhanced Access for Compact Optical Connectors. It is a revolutionary technology platform that promises to enhance the way data center and telecom operators manage the increasingly complex world of optical connectivity. The PEACOC fiber patch panel is the industry’s first and only solution to allow tool-less access for up to 144 LC simplex connectors in just 1RU of rackspace. It is also the only high density solution which provides easy access to both the front and rear connectors at the same time – from the same side of the rack!
The Go!Foton PEACOC technology platform accomplishes this feat while also improving the speed and ease at which even “large hand” technicians can access small form factor optical connectors. Higher capacity and higher density fiber connectivity solutions give service providers greater flexibility while also allowing telecom and data center providers to more efficiently and more cost effectively manage the explosive growth in the number of fiber connections. With PEACOC technology, each individual optical connection can be easily isolated from adjacent ports creating a generous region of unobstructed handling space for safe, fast, and error free management of optical fiber jumpers.
Go!Foton’s PEACOC fiber platform is fully compatible with existing 19” racks and cable management solutions. This makes PEACOC an ideal solution for operators looking to integrate high density connectivity solutions into their existing rack environment or into compact OSP cabinets for true “pay-as-you-grow” convenience and cost efficiency. For maximum port capacity and density, PEACOC may be deployed using Go!Foton’s integrated Fiber Distribution Frame which will allow up to 5760 total ports. The optical port density can be increased even further with the use of smaller form factor connectors, or by integrating multi-fiber push-on (MPO) connectors. The Go!Foton PEACOC technology platform addresses the biggest limitation associated with the use of high density fiber connectivity solutions today, namely, the difficulty in accessing and handling the compact optical connectors while performing typical move-add-change (MAC) services. Designed for use with either singlemode and multimode LC connectors, the PEACOC platform is also available for use with SC connectors. Other available options include full or partial factory pre-termination with standard or angled connectors using state of the art 1.2mm and 1.6mm fiber optic jumpers. A further enhancement in fiber management can be achieved by using the optional PEACOC fanout cable which combines 12 or 24-LC jumpers into a single 3.0mm cable design.
Features
- Up to 144 LC simplex or duplex connectors per 1RU
- Unparalleled accessibility – easy, fast, and accurate!
- Craft friendly design for even “large hand” technicians
- Access to both front & rear connectors at the same time
- Scalable in increments of 1RU for true “pay-as-you-grow” convenience
- Tested by Telcordia for compliance with GR-449 Issue 3, GR-63, and Verizon TPR.9464 standards
- Compatible with any standard 19″ or 23″ rack
- Designed for use with 1.2mm and 1.6mm simplex or duplex LC jumpers
- Optional PEACOC fanout cable
- Configurable for numerous optical networking applications
Installation and Operations Videos
- PEACOC® Installation: Chassis & LC/SC Fanout Cables (Rear)
- PEACOC® Installation: Chassis & MPO Cables (Rear)
- PEACOC® Installation: Chassis with Pre-Terminated Pigtails
- PEACOC® Operations: Patching Cables into Empty Cassette (Front)
- PEACOC® Operations: Patch Cables into Partially Filled Cassette (Front)
- PEACOC® Operations: Removing Cables from Filled Cassette (Front)
- PEACOC® Operations: MPO Cleaning Procedure
- PEACOC® Installation: Panel with TAP Cassettes (Front)

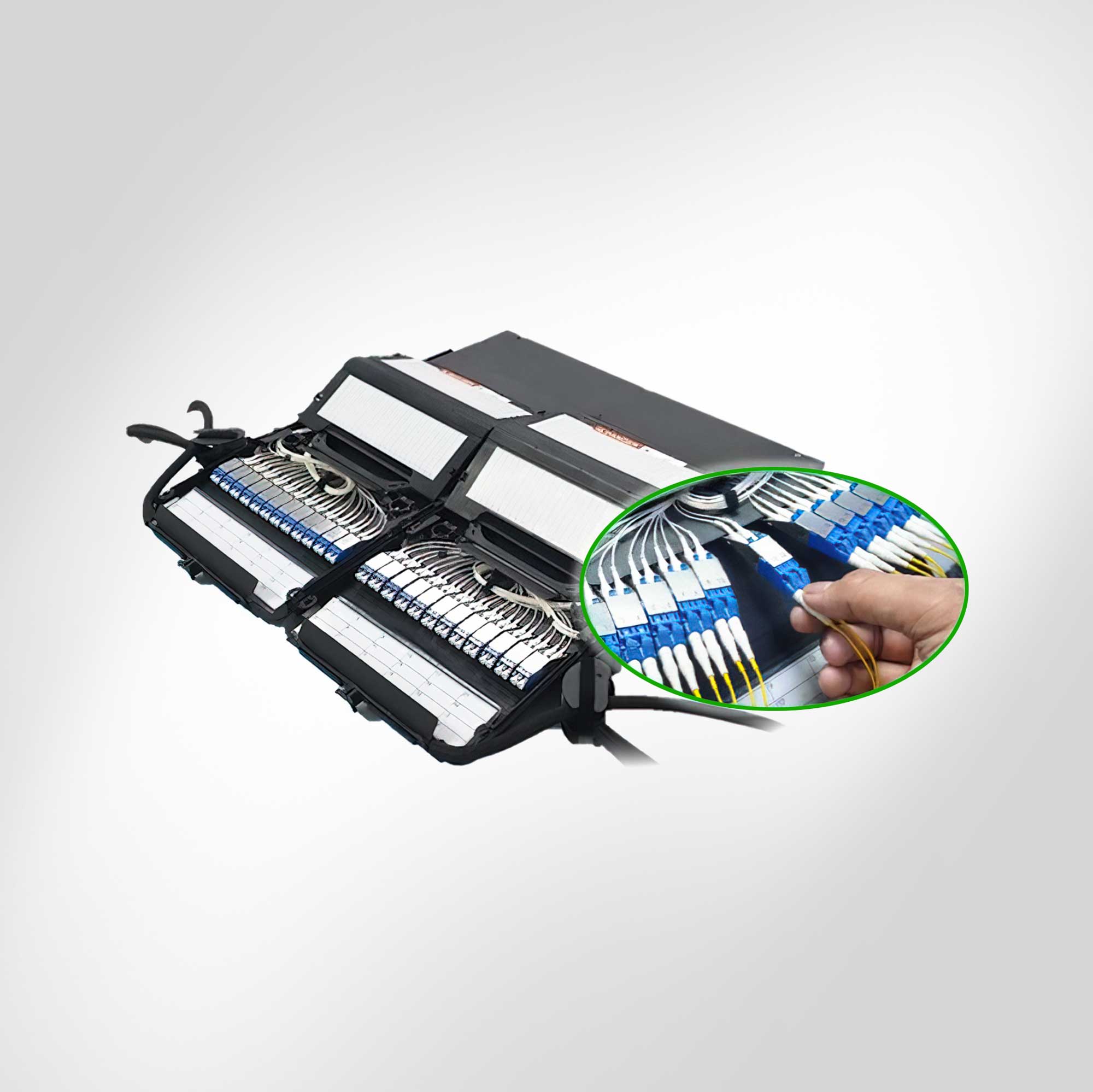

PEACOC®HD All-Front Access Patch Panel
PEACOC® is Go!Foton’s Platform with Enhance Access for Compact Optical Connectors. It is an innovative platform that revolutionizes the way data center and telecom operators manage the increasingly complex world of optical connectivity. With PEACOC® spreadable adapter technology, each individual optical connection can be easily isolated from the adjacent ports creating a generous region of unobstructed handling for safe, fast and error-free management of optical fiber jumpers. It is the only high-density solution that provides easy access to both the front and back side connectors at the same time –from the same side of the rack.It’s high-density fiber management –that works!
Features
- 72 LC / 36 SC connections per 1RU panel
- Left and right cassettes are internally cross-connected and can be accessed independently for all front-side operation
- Fiber management with innovative SOC™sleeve
- Tested by Telcordia for compliance with GR-449 Issue 3, GR-63 NEBS standards
- Customized front door lock option for added security
- Optional 2RU and 4RU sizes for even higher fiber count

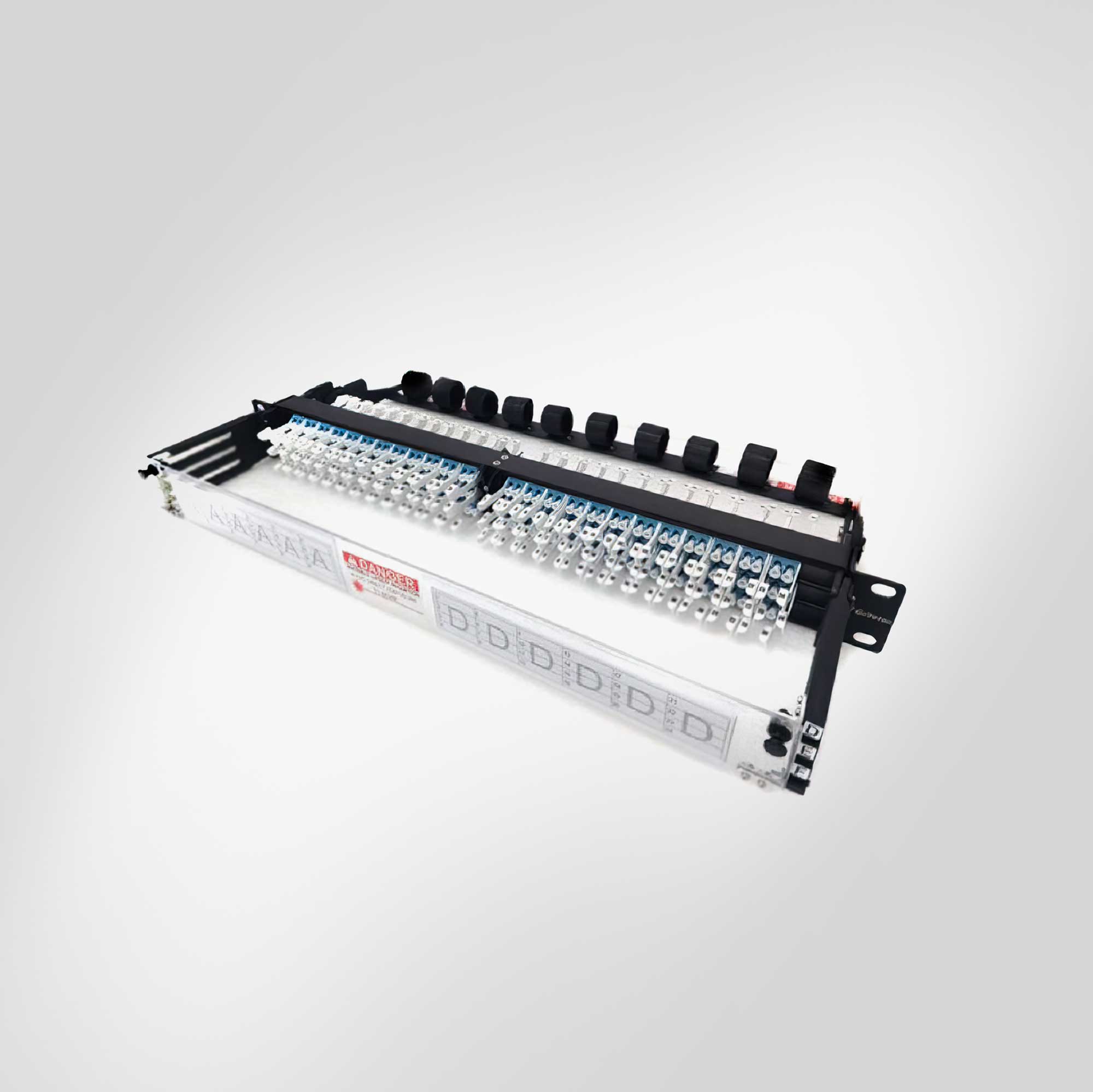

NEMO Any Density Patch Panel
Simple and low-cost solution that enables superior access and secure fiber management.
The NEMO Fiber Patch Panel is the latest advancement in the PEACOC® product family that integrates Go!Foton’s innovative spreadable adapter technology into a traditional bulkhead style fiber panel. The result is a simple and low-cost solution that enables superior access and secure fiber management for any number or type of connection. It is ideal for today’s modern high capacity and data-rate intensive telecommunication and data communication networks Network Enhanced Manageable Optics.
It’s “any density” fiber management – that works!
Features
- Easy Access: NEMO spreadable adapter technology that minimizes insertion loss while providing generous access to all connectors
- Scalable Density: From 6 ports (single rail) to 72 ports (fully loaded) and anything in between
- Versatile: Supports a variety of connector types from LC to SC to MPO and more
- Universal: Mounts in any 19” or 23” rack, frame, cabinet, or wall mount bracket
- Flexible: Supports basic patch panel functionality and pre-terminated cabled panels
- Cost Effective: Simple, lightweight design

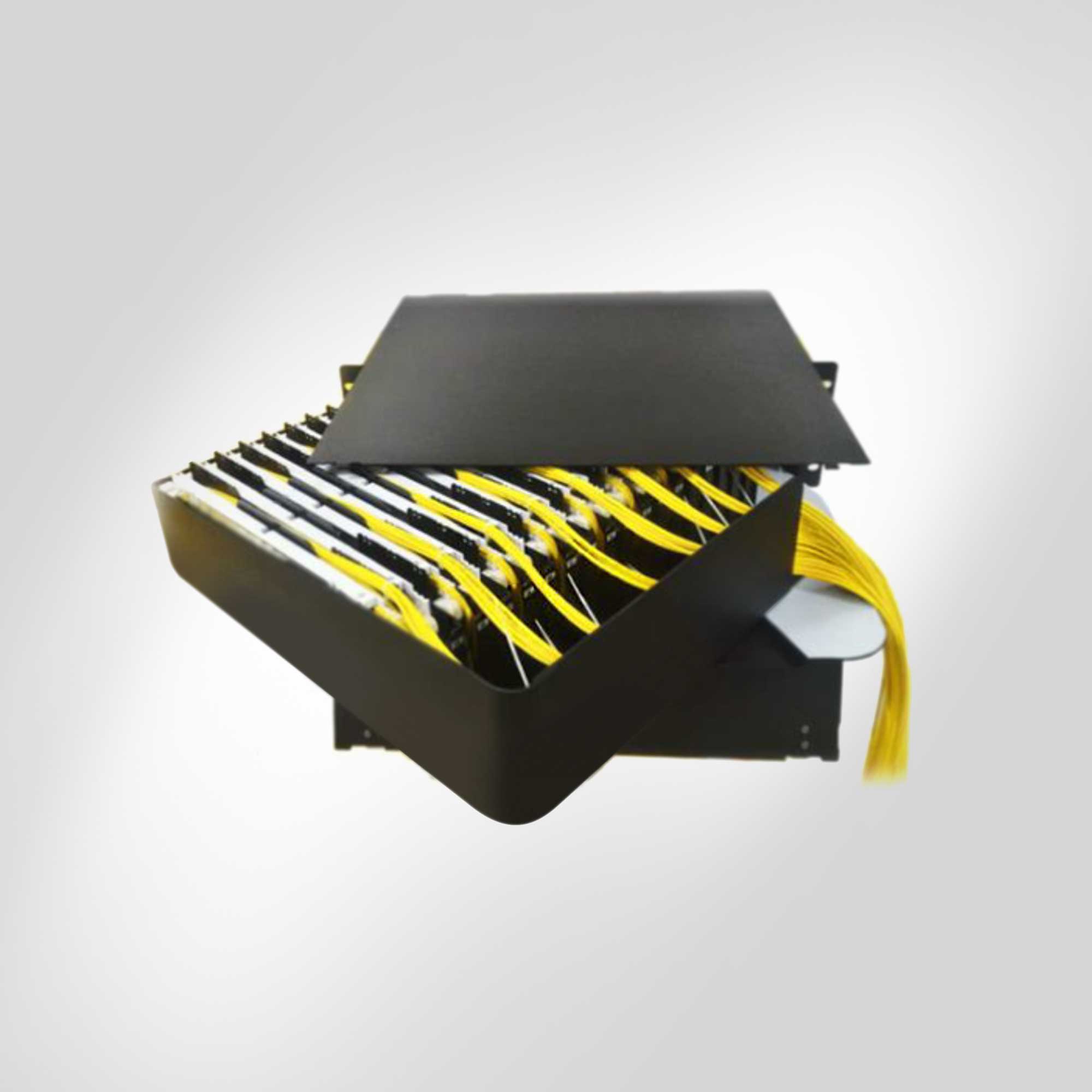

PEACOC®3RU Splice Chassis
The Go!Foton PEACOC 3RU Splice Chassis is a high densityrack-mount splice enclosure used to securely store & manage fiber splices for high density fiber distribution applications. It is designed to accommodate up to three (3) units of 144F fully loaded 1RU PEACOC™ fiber patch panels using single fusion splices.
Features
- Up to 432 fiber splices per 3RU
- Mounts into standard 19”/23” racks and frames
- Accommodates several splice tray styles (any splice trays that will not exceed the outside dimensions of (270mmL x 98mmW x 11.5mmH)
- Spools up to 1.25~2.5meters of excess cable buffer tubing on the back side of each trays
- Uses a sliding and rotating mechanism within the chassis for full & easy tray and fiber cable access
